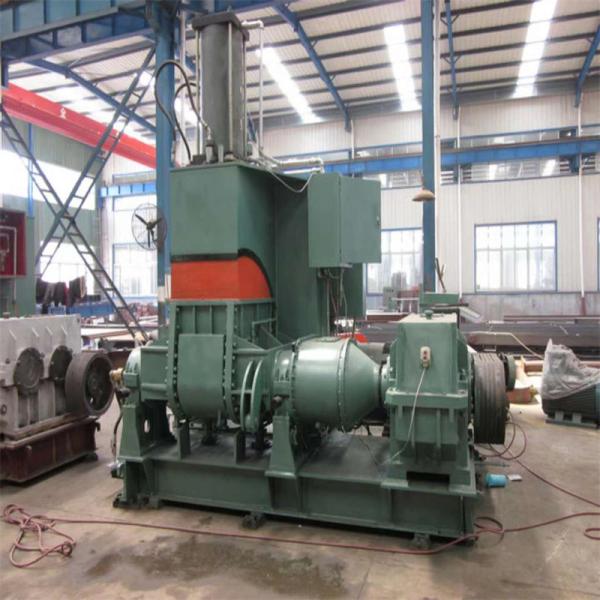

55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine

Product Categories
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD
Contact Now

55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine

Place of Origin : China

Brand Name : HUALONG

Model Number : X(S)N-75x30

Certification : CE,ISO

Supply Ability : 30 Set/Sets per Month

Price : $20000/sets

MOQ : 1 set

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : PLC, Motor, Gear

Power (kW) : 110kW

Compressed Air Pressure(MPa) : 0.8 MPa

Warranty : 1 years

Key Selling Points : High Productivity

Motor type : Hard alloy welding

Application : Mixing Rubber

Contact Now

Chinese Supply Excellent Performance 55l Rubber Kneader Machine For Rubber Product Processing Machinery
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
The main purpose
This machine is mainly used for plasticizing and mixing of polymer or natural rubber, synthetic rubber, recycled rubber and other polymers.
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
Rotor assembly
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
Kneader mixing chamber and side walls all through anneal heating treatment to secure lifetime no broken and no leaking.
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine

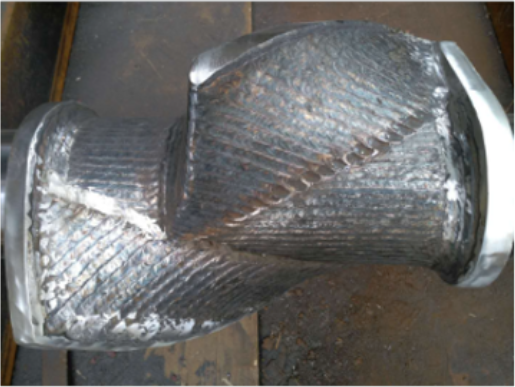

Hard alloy welded rotor, finely polishing,chrome plated again
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine

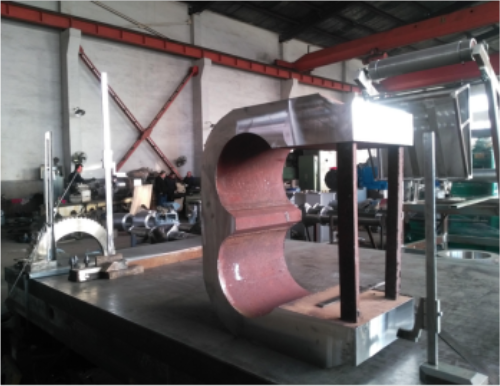

Hard welded mixing chamber,finely polishing, chrome plated
55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine

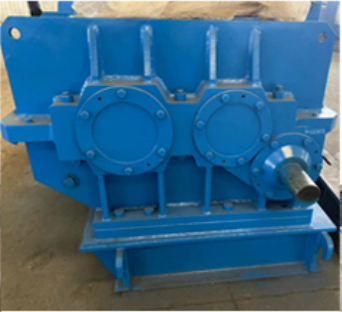

Hard-tooth gear reducer: low carbon alloy steel, quenching treatment, gear grinding process.
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model
X(S)N35
X(S)N55
X(S)N75
X(S)N110
Total volume of mixing chamber (L)
75
125
180
250
Working volume of mixing chamber (L)
35
55
75
110
Driving motor power (KW)
55
75
110
185
Tilting motor power (KW)
5.5
5.5
5.5
7.5
Tilting angle
110
110
110
110
Rotational speed of the rotor ( front/rear) (r/min)
36/30
36/30
36/30
30/24.5
Pressure of compressed air (Mpa)
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Cooling water pressure (Mpa)
0.3-0.4
0.3-0.4
0.3-0.4
0.3-0.4
Size (L*W*H) (mm)
3150*1900*2880
3280*2120*3090
3280*2220*3250
4070*2712*3580
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,SHENGHUALONG RUBBER MACHINERY exported to more than 40 countries,enjoy a good reputation in the world market.
